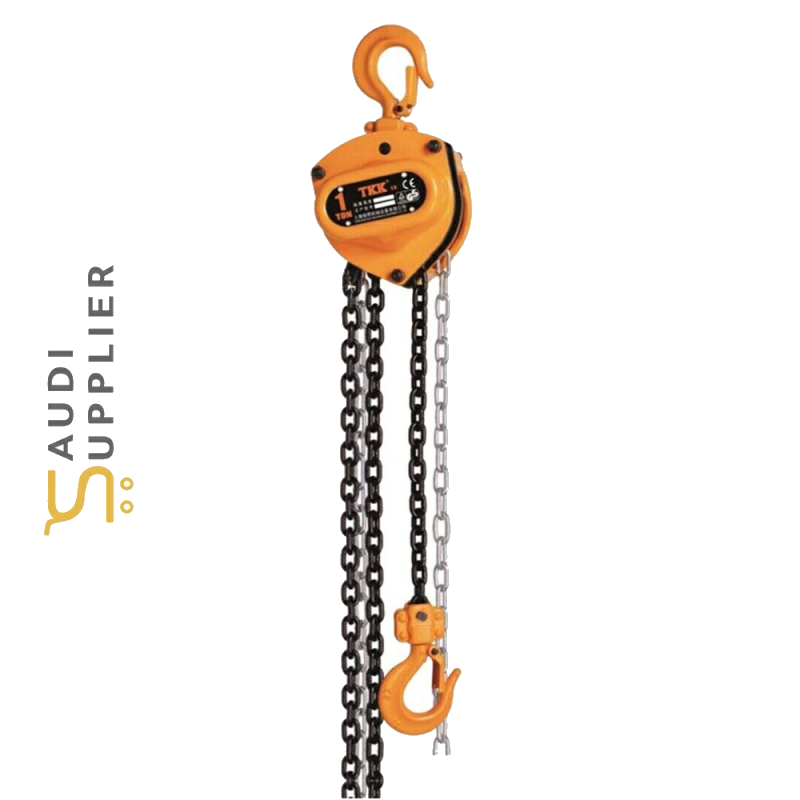

Manual-hand operated-portable chain block hoist pulley

Compare

  Manual-hand operated-portable chain block hoist pulley Features:

  • WLL is 0.5 tonnes and 20 tonnes.
  • The factor of safety is 4:1.
  • Safe and reliable to use, with little upkeep needed.
  • Small hand pull and high speed.
  • It’s light and easy to move around.
  • Service that lasts.
  • Hooks that can turn 360o and have heavy duty cast safety locks.
  • Automatic stop with a double pawl.
  • Tested to 150% of the Working Load Limit.
  • Load/lift chain with a high tensile strength.
  • Zinc plated / Hot-dip Chain made of zinc.
  • Strong bolts between the side plates and the cover of the housing and a strengthened cover for the hand wheel make the machine more stable.
  • Guide wheels that were made with great care make sure that the load chain moves smoothly.
  • The gears, side plates, and load chain sheave can last for a long time because they have good bearings.
  • With double pawls and a fail-safe brake mechanism, activities are safe.
  • Seal roller bearing load sheave.
  • Steel side plates, gears, and shafts that have been heated to make them stronger.
  • Put out and cooled Chain and hooks made of high-strength metal steel
  • JB Lifting was finished with a powder coat. On the tag, you can see the logo, CE, serial/ID number, WLL/SWL.



SAR 621.00

Compare

Manual-hand operated-portable chain block hoist pulley Discription:

Safe and Secure (SSTE) sells hoisting equipment that is second to none.

This includes manual-hand operated, electric, pneumatic-air, spark-resistant, and corrosion-resistant equipment.  We have heavy-duty, business-oriented products. The JB Lifting Chain Hoist, Block and Pulley are light, small, portable, easy to keep and check, and very durable.

They can be used to pull, lift, and place things in the right place. The JB Lifting chain block is an easy-to-use hand-crank gadget for lifting. It can be used in factories, mines, farms, building sites, plant maintenance, wharves, docks, and warehouses for installing equipment and other industrial uses, as well as for loading and unloading goods.

It is especially helpful for lifting work outside and in places where there is no electricity. As a travelling chain block, the JB Lifting chain hoist can be connected to any type of plain or geared trolley. It works with the railway overhead conveying system, the hand travelling crane, and the Jib crane.



SKU: SP8291420408 Categories: , Tag:



TEM CODE   CHB0.5T       CHB01T        CHB1.5T       CHB02T          CHB03T        CHB05T        CHB10T        CHB20T

Capacity / WLL / SWL (Ton)        0.5     01      1.5     02      03      05          10      20

Standard Length (Chain Lift in Meter)*    3        3        3        3        3          3        3        3

Test Load (Ton)      0.75    1.5     2.4     3        4.8     7.5     12.5    25

Pull to lift full load (N)        240     330     340     340     350     390          410×2 410×2

Number of Load Chain (Chain Falls)       1        1        1        1        2          2        4        8

Load  Grade 80 Chain Dia (mm)  5        6.3     7.1     8        7.1     9          9        9

Dimensions (mm)    A        127     147     147     179     147     179          179     207

B        144     157     174     204     206     263     367     873

C        285     315     340     315     340     380     475     760

D        27      30      34      37      43      46      67      96

Net Weight (kg)       8.6     11.5    13.8    21.6    23      41      78          190

Weight of Extra Chain each Meter (kg)   1.5     1.8     2.1     2.3     3.2          4.4     7.9     14.8
