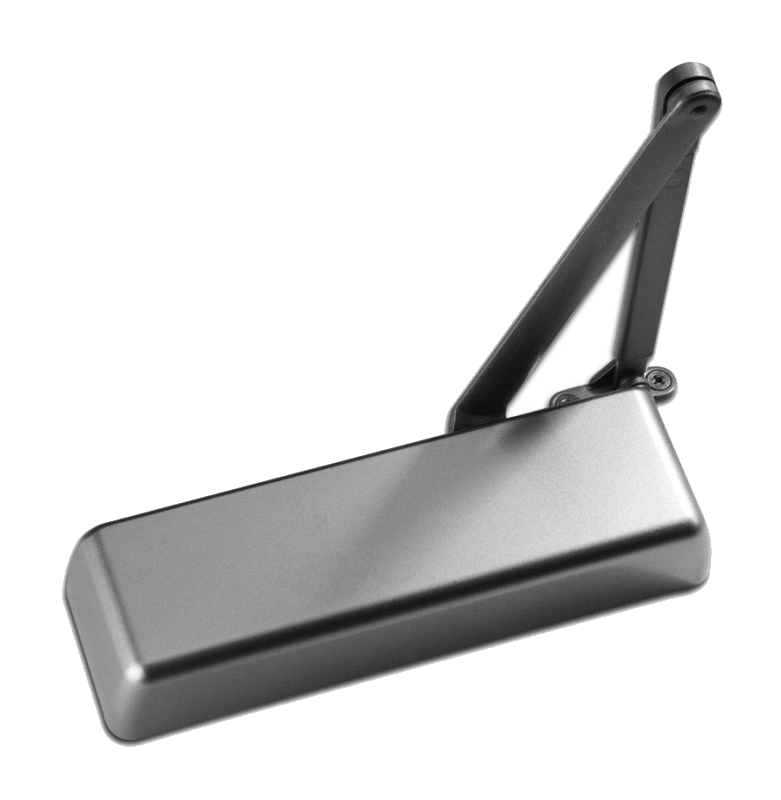

PDQ 7100 Series Surface Mounted Heavy Duty Door Closer – 7101 BC PA 689


PDQ’s innovative design includes a 5 lb barrier free spring setting for ADA compliance, plus 6 additional spring settings. The greater range of spring settings provide 17% more adjustment capability to find that sweet spot for for optimal door closing action. Available with both Regular/Top Jamb and Parallel Arm applications.

590.40 SR

DQ 7100 Series Door Closer, BF-6, full cover, SNB (Tri-pack), 689 aluminum finish.

PDQ’s innovative design includes a 5 lb barrier free spring setting for ADA compliance, plus 6 additional spring settings. The greater range of spring settings provide 17% more adjustment capability to find that sweet spot for for optimal door closing action. Available with both Regular/Top Jamb and Parallel Arm applications.



Specifications

HANDING Non-handed
OPERATION Rack and pinion design
BODY High Strength Cast Iron
ARMS Forged steel main arm
Flat style arm assembly
ARM OPTIONS Hold open arm
Track/Track Hold Open
DS/DSHO heavy duty parallel stop arm
Spring Cushion Stop for DS/DSHO
EDA (Extra Duty PA Arm).
PISTON Hardened steel, 1-1/2” diameter
ADJUSTMENT Adjustable controlled closing
Separate hydraulic backcheck standard
Backcheck positioning valve standard
Separate sweep, latch, backcheck intensity and backcheck positioning valves
Optional delayed action (in addition to backcheck)
ADJUSTMENT VALVES All Adjustment Valves are STAKED.
FACTORY DEFAULT SPRING SETTING Size 3
SIZE Adjustable BF 1 through 6
MOUNTING Mounting hole pattern retrofits LCN® 4040
Tri-packed for regular, top jamb and parallel arm installations
Includes fasteners for hollow metal, wood or aluminum doors and frames
Sex nuts and bolts standard
Self drilling self tapping screws available
COVER Full plastic cover standard (non-handed), optional full metal cover available (handed)
FINISHES 605 (US3) – Polished Brass, 625 (US26) – Polished Chrome, 689 (US28) – Aluminum, 695 (N/A) – Duro Bronze, 696 (US4) – Gold
FINISHES – SPRING CUSHION STOPS 605 (US3) – Bright Brass (PVD), 613 (US10B) – Oil Rubbed Bronze (PVD), 630 (US32D) – Satin Stainless Steel
Note: PVD (Physical Vapor Deposition) coated finishes offer outstanding resistance to wear, durability and corrosion.
CERTIFICATIONS, LISTINGS, COMPLIANCES UL228 listed
ANSI/UL 10C listed for labeled swinging fire doors rated for up to and including 3 hours
Certified to ANSI/BHMA A156.4-2006 Grade 1
Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
Meets requirements of the Buy American Act
