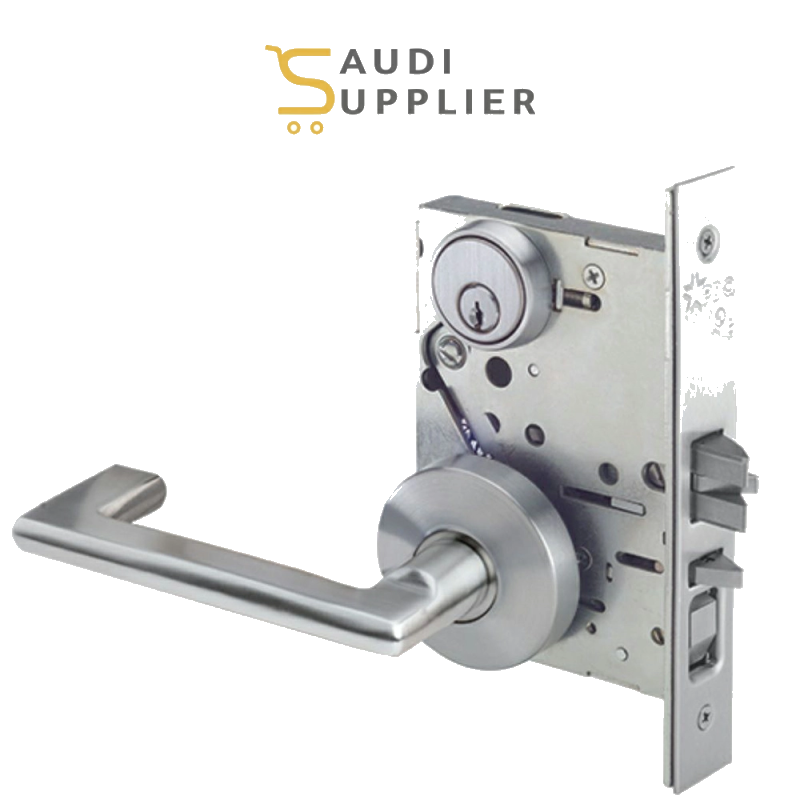

PDQ MR Series Entry Mortise Lockset


Mortise Entrance / Office ANSI F04; single cylinder non-deadbolt; 630 finish, PJSJ sectional trim Default cylinder.

992.45 SR

Specifications
DOOR PREP :Fits standard ANSI/BHMA A156.115 for Mortise Locks.

FOR DOORS :1-3/4” standard, 2” and 2-1/4” special order from factory.

BACKSET :2-3/4”

CASE :12-gauge cold rolled steel mechanism

Dichromated for corrosion resistance ARMOR FRONT Beveled 1/8” on 2”

⊗625(US26) & 630 (US32D) use stainless steel as base material, all other finishes use stainless steel or brass as base material STRIKE Handed Curved Lip Strike ⊗625(US26) & 630 (US32D) use stainless steel as base material, all other finishes use stainless steel or brass as base material

LATCHBOLT :3/4” Throw

Investment Cast Stainless Steel Anti-friction

DEADBOLT :1” Throw Investment Cast Stainless Steel

HANDING Most functions field reversible. Specify handing for strikes, consult factory for details TRIM F trim – forged brass levers, escutcheons and turns.

J & JW trim – stainless steel escutcheon and levers, PHL, Mem, MIA and BSN are solid levers, ORL, DAL and CHI are tube levers. Ball Knobs are wrought.

KEYS :Two (2) per Lock

KEYWAYS :SCC standard (Schlage C Compatible)

Also available in keyways of other manufacturers

INTERCHANGEABLE CORE 6 or 7-pin

Compatible with Best, Falcon & Arrow Large Format IC Cores compatible with Schlage.

CYLINDER :6 or 7-pin Brass Mortise Cylinder

KEYING :Options: MK, CMK or GMK

Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems

FINISHES
F Series Trim: 626 (US26D) Satin Chrome J and JW Series Trim: 605 (US3) Bright Brass, 606 (US4) Satin Brass, 612 (US10) Satin Bronze, 613 (US10B) Oil Rubbed Bronze, 629(US32) Bright Stainless Steel, 630 (US32D) Satin Stainless Steel.

Antimicrobial Coating available on 626 (US26D) & 630 (US32D) for F, J, and J Wide Series.

CERTIFICATIONS, LISTINGS, COMPLIANCES UL/CUL 10C listed for 3 hrs, for single doors up to 4’0” x 8’0”

Certified to ANSI/BHMA 156.13-2005 Operational Grade 1 and Security Grade 1 Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings Meets Federal Specification FF-H-106C

WARRANTY Lifetime Limited Warranty
