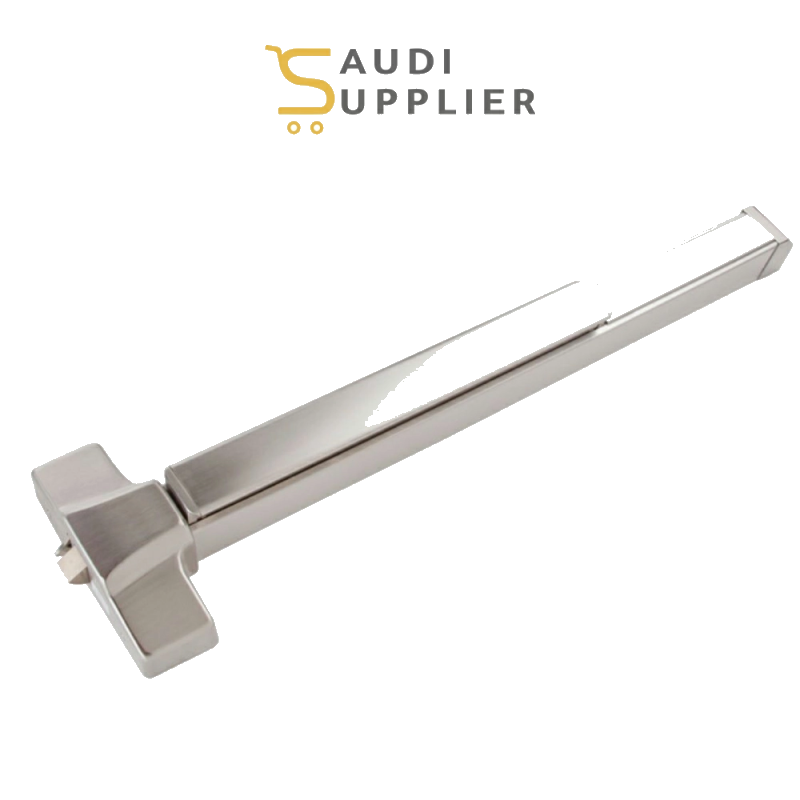

Wide Stile Rim Exit Device, Non Fire Rated

Specifications
Chassis Corrosion resistant plated steel
Rail Extruded aluminum. Specify 630F for full stainless tactile surfaces (roll formed)
Latch RIM (R) – Pullman with dead latching, stainless steel, 3/4” throw
Backset 2-3/4”
Hand Device is non-handed, most trim is non-handed, all handed trim is field reversible Dogging Hex key dogging standard

Cylinder dogging optional No dogging on fire listed devices

Minimum Style Width 4-1/4”
Door Thickness 1-3/4” standard, others vary by trim selection
Door Width Standard for 3 ft doors, option available for doors up to 4 ft width
Finishes 630 – Satin Stainless Steel
Fasteners Device supplied with sex nuts, machine screws and wood screws
Certifications, Listings, Compliances UL 305 listed for “Panic”, UL listed for “Fire Exit Hardware” up to 3 hours

Certified to ANSI/BHMA A156.3 Grade 1 Meets requirements of the Buy America Act

Warranty :Ten (10) year limited warranty
Electronic Access Control Options

Motorized Latch Retraction and Dogging

Fail Secure/Fail Safe Trim

Request to Exit/Signal Switches

Stand Alone Key Pad Trim

Alarms

Latch Bolt Monitoring
