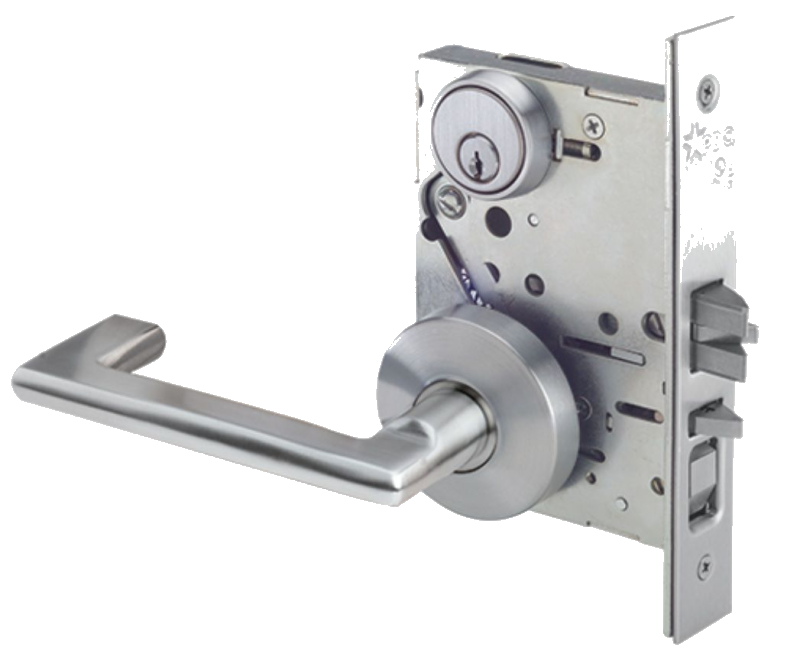

PDQ MR Series Storeroom Mortise Lockset

Availability:

Out of stock


Mortise Store room ANSI F07; single cylinder non-deadbolt; 630 finish, PJSJ sectional trim Default cylinder

SAR 989.45

Out of stock

Compare

Features

  • Latchbolt operated by lever from either side
  • Emergency coin turn outside unlocks outside lever
  • Thumbturn inside locks/unlocks outside lever
  • Closing door unlocks outside lever
  • Rotating inside lever unlocks outside lever



Specifications



DOOR PREP  Fits standard ANSI/BHMA A156.115 for Mortise Locks.
FOR DOORS  1-3/4” standard, 2” and 2-1/4” special order from factory.
BACKSET  2-3/4”
CASE  12-gauge cold rolled steel mechanism

Dichromated for corrosion resistance

ARMOR FRONT  Beveled 1/8” on 2”

⊗625(US26) & 630 (US32D) use stainless steel as base material, all other finishes use stainless steel or brass as base material

STRIKE  Handed Curved Lip Strike

⊗625(US26) & 630 (US32D) use stainless steel as base material, all other finishes use stainless steel or brass as base material

LATCHBOLT  3/4” Throw

Investment Cast Stainless Steel

Anti-friction

DEADBOLT  1” Throw

Investment Cast Stainless Steel

HANDING  Most functions field reversible. Specify handing for strikes, consult factory for details
TRIM  F trim – forged brass levers, escutcheons and turns.

J & JW trim – stainless steel escutcheon and levers, PHL, Mem, MIA and BSN are solid levers, ORL, DAL and CHI are tube levers. Ball Knobs are wrought.

KEYS  Two (2) per Lock
KEYWAYS  SCC standard (Schlage C Compatible)

Also available in keyways of other manufacturers

INTERCHANGEABLE CORE  6 or 7-pin

Compatible with Best, Falcon & Arrow

Large Format IC Cores compatible with Schlage.

CYLINDER  6 or 7-pin Brass Mortise Cylinder
KEYING  Options: MK, CMK or GMK

Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA)

Can be keyed into existing master key systems

FINISHES  F Series Trim: 626 (US26D) Satin Chrome

J and JW Series Trim: 605 (US3) Bright Brass, 606 (US4) Satin Brass, 612 (US10)  Satin Bronze, 613 (US10B) Oil Rubbed Bronze, 629(US32) Bright Stainless Steel, 630 (US32D) Satin Stainless Steel.

Antimicrobial Coating available on 626 (US26D) & 630 (US32D) for F, J, and J Wide Series.

CERTIFICATIONS, LISTINGS, COMPLIANCES  UL/CUL 10C listed for 3 hrs, for single doors up to 4’0” x 8’0”

Certified to ANSI/BHMA 156.13-2005 Operational Grade 1 and Security Grade 1

Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings

Meets Federal Specification FF-H-106C
