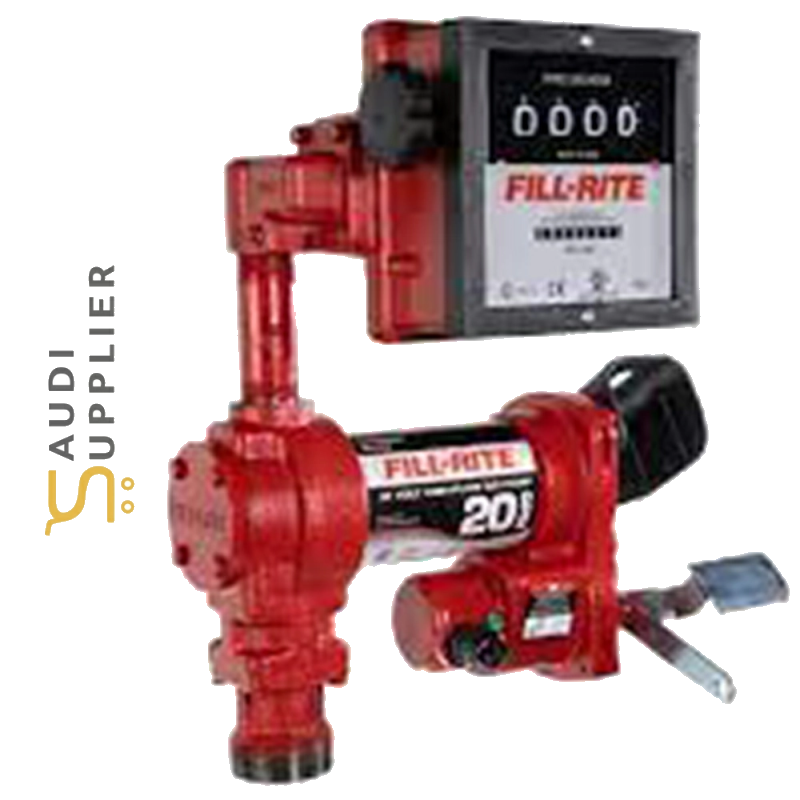

Fill Rite Fuel Transfer Pump with Meter 12Volt DC

Fill Rite Fuel Transfer Pump discerption:

Fill-Rite’s 1200 Series heavy-duty gasoline transfer pumps have a rotating connection box for easy installation and are built to last with cast-iron construction.

SAR 4,033.47


Fill Rite Fuel Transfer Pump Features:

  • The FR1211HL is a heavy-duty fuel transfer pump with a 12V DC output of 57 LPM. This pump and accessories package includes a metre, hose, nozzle, suction pipe, and installation materials.
  • Durable cast-iron construction provides heavy-duty performance and can sustain frequent use in mobile tank applications.
  • Simple Installation – The flexible electrical junction box rotates 180° for greater flexibility while wiring and easier installation in confined places.
  • Long life – a thermally insulated motor avoids overheating, guaranteeing your pump will last.
  • Built-in strainer filters out particles and prevents gasoline contaminants from damaging your equipment.
  • Reliable On/Off Switch – The on/off switch lever has a cast metal stopping arm that prevents premature failure due to repeated use.
  • Limited Lifetime Warranty – To safeguard your purchase and your business, we offer an industry-leading Limited Lifetime Warranty.


SKU: SP1946220472 Categories: ,

Max Flowrate          15 GPM / 57 LPM

Flowrate Range       0 – 57 LPM

Inlet / Outlet Thread Size (in.)      1 ” / 0.75 ”

Mounting Size / Thread / Type     2″ / NPT / Electric

Duty Cycle    30 min on / 30 min off

Motor Power 0.25

Power Type  DC

Suction Lift (ft.)       8 ‘

Dry Vacuum (in. Hg)          5

Max Discharge Pressure    16 PSI

Discharge Head (ft.) 37 ‘

Max Operating Pressure (PSI)     16

Strainer Mesh Size (micron)         20×20

Accuracy (+/- %)     1 %

Repeatability (+/- %)          0.38 %

Display Type Mechanical

Display Digits          3

Viscosity Range (cSt)        1 to 4

Meter 807CL Mechanical Meter (Litres)

Discharge Hose      ¾” X 12’ Hose with Static Ground Wire

Nozzle          ¾” Cast Aluminum Manual Nozzle

Ground Wire Yes

Cable Length (ft.)    18

Cable Gauge 12

Cable Connection    Bare Leads

Assembled Product Height x Width x Depth (in.)         N/A x N/A x 7.0

Assembled Product Weight (lbs.) 23.7

Package Height x Width x Depth (in.)     10 x 21.81 x 19.81

Gross Weight (lbs.) 37.000 lbs
